Creating a Simple Voronoi Treemap with D3.js

In order to create a simple Voronoi treemap using D3.js, follow these steps:

Initialize the HTML Structure:

Set up the HTML structure with an SVG container where the treemap will be rendered.
<svg id="simpleVoronoi"></svg>
The <svg> element with the ID "simpleVoronoi" serves as the container for the Voronoi treemap.
Import D3.js Library:

Import the D3.js library by adding the following script tag just before your custom script:
<script src="https://d3js.org/d3.v7.min.js"></script>
This script tag imports the D3.js library from the official CDN, making D3.js functionalities available in your project.

Initialize the Voronoi Treemap:

Define constants for SVG dimensions, data, and necessary variables. Initialize the Voronoi treemap by calling functions to set up data, layout, and drawing.


const HEIGHT = 500;
const WIDTH = 960;
const HALF_WIDTH = WIDTH / 2;
const HALF_HEIGHT = HEIGHT / 2;

// Define your data array here
const data = [
{ name: "China", weight: 46.0, color: "#ffffcc" },
  { name: "Japan", weight: 18.32, color: "#ffcc99" },
  { name: "India", weight: 8.77, color: "#ffcccc" },
  { name: "South Korea", weight: 5.77, color: "#ff99cc" },
  { name: "Russia", weight: 5.58, color: "#ffccff" },
  { name: "Indonesia", weight: 3.6, color: "#cc99ff" },
  { name: "Turkey", weight: 3.01, color: "#ccccff" },
  { name: "Saudi Arabia", weight: 2.7, color: "#99ccff" },
  { name: "Iran", weight: 1.77, color: "#ccffff" },
  { name: "Thaïland", weight: 1.64, color: "#99ffcc" },
  { name: "UAE", weight: 1.55, color: "#ccffcc" },
  { name: "Hong Kong", weight: 1.3, color: "#ccff99" },
];

// Initialize SVG container
const svg = d3.select("#simpleVoronoi")
  .attr("width", WIDTH)
  .attr("height", HEIGHT);

const TREEMAP_RADIUS = Math.min(HALF_WIDTH, HALF_HEIGHT);

const _voronoiTreemap = d3.voronoiTreemap();
let hierarchy, circlingPolygon;

const fontScale = d3.scaleLinear();

function init(rootData) {
  initData();
  initLayout();
  hierarchy = d3.hierarchy({ children: rootData }).sum((d) => d.weight);
  _voronoiTreemap.clip(circlingPolygon)(hierarchy);

  drawTreemap(hierarchy);
}

init(data);

This block of code initializes constants, sets up the SVG container, and prepares data and layout for the Voronoi treemap.

Constants like HEIGHT and WIDTH define the dimensions of the SVG container. Data, such as country names, weights, and colors, are stored in the data array. The init function initializes the treemap by calling other functions to set up data, layout, and drawing.

Initialize Data and Layout:

Define functions to initialize data and layout settings for the treemap.


function initData() {
  circlingPolygon = computeCirclingPolygon();
  fontScale.domain([3, 20]).range([8, 20]).clamp(true);
}

function computeCirclingPolygon() {
  return [
    [0, 0],
    [WIDTH, 0],
    [WIDTH, HEIGHT],
    [0, HEIGHT],
  ];
}

function initLayout() {
  const drawingArea = svg.append("g").classed("drawingArea", true);
  const treemapContainer = drawingArea.append("g").classed("treemap-container", true);

  treemapContainer
    .append("path")
    .classed("world", true)
    .attr("transform", `translate(${-TREEMAP_RADIUS}, ${-TREEMAP_RADIUS})`)
    .attr("d", `M${circlingPolygon.join(",")}Z`);
}

These functions initialize data and layout settings for the treemap, including the circling polygon and font scale.

The initData function calculates the circling polygon and sets the font scale based on the provided data. The computeCirclingPolygon function calculates the vertices of the circling polygon, while the initLayout function sets up the SVG container and draws the circling polygon.

Draw the Treemap:

Create a function to draw the Voronoi treemap based on the provided data and layout.


function drawTreemap(hierarchy) {
  const leaves = hierarchy.leaves();

  const cells = svg.select(".treemap-container")
    .append("g")
    .classed("cells", true)
    .selectAll(".cell")
    .data(leaves)
    .enter()
    .append("path")
    .classed("cell", true)
    .attr("d", (d) => `M${d.polygon.join(",")}z`)
    .style("stroke", "black")
    .style("stroke-width", "10px")
    .style("fill", (d) => d.data.color);

  const labels = svg.select(".treemap-container")
    .append("g")
    .classed("labels", true)
    .selectAll(".label")
    .data(leaves)
    .enter()
    .append("g")
    .classed("label", true)
    .attr("transform", (d) => `translate(${d.polygon.site.x}, ${d.polygon.site.y})`)
    .style("font-size", (d) => fontScale(d.data.weight));

  labels
    .append("text")
    .classed("name", true)
    .html((d) => d.data.name);

  labels
    .append("text")
    .classed("value", true)
    .text((d) => `${d.data.weight}%`);
}

This function draws the Voronoi treemap based on the provided data and layout settings, including cells and labels.

The drawTreemap function creates cells and labels for each data point in the treemap. It appends SVG elements for cells and labels, styles them accordingly, and positions them based on the calculated data. The cells represent the Voronoi regions, while the labels display country names and weights.

Additional Info:

You will notice in the tutorials that there are multiple functions that are not included in d3, that is because the operations necessary for the Voronoi treemap are imported via the d3-voronoi-treemap plugin. The documentation and installation instructions of which can be found using this link: here. This plugin hosts the relevant function calls to build a visualization of this model.

d3.voronoiTreemap() creates a new voronoiTreemap with a set of default configuration values, functions, and algorithms, including clip, extent, size, convergenceRatio, maxIterationCount, minWeightRatio, and prng. Some of these standard methods are used in the tutorial and are fairly self-explanatory; they all play their part in the process for creating a Voronoi treemap.
- clip: Used to set the clipping polygon for the treemap.
- extent: Used to set the extent of the treemap.
- size: Specifies the size of the treemap.
- convergenceRatio: Sets the convergence ratio for the treemap.
- maxIterationCount: Sets the maximum number of iterations for the treemap.
- minWeightRatio: Sets the minimum weight ratio for the treemap.
- prng: Sets the random number generator for the treemap.
These methods are essential for configuring various aspects of the Voronoi treemap, such as the size, convergence behavior, and clipping boundaries. Understanding and properly configuring these parameters are crucial for effectively visualizing data using the Voronoi treemap technique.

Voronoi General Background Processes

Scatter Plot:

A voronoi diagram starts with a set of 2d coordinate points plotted on a plane.

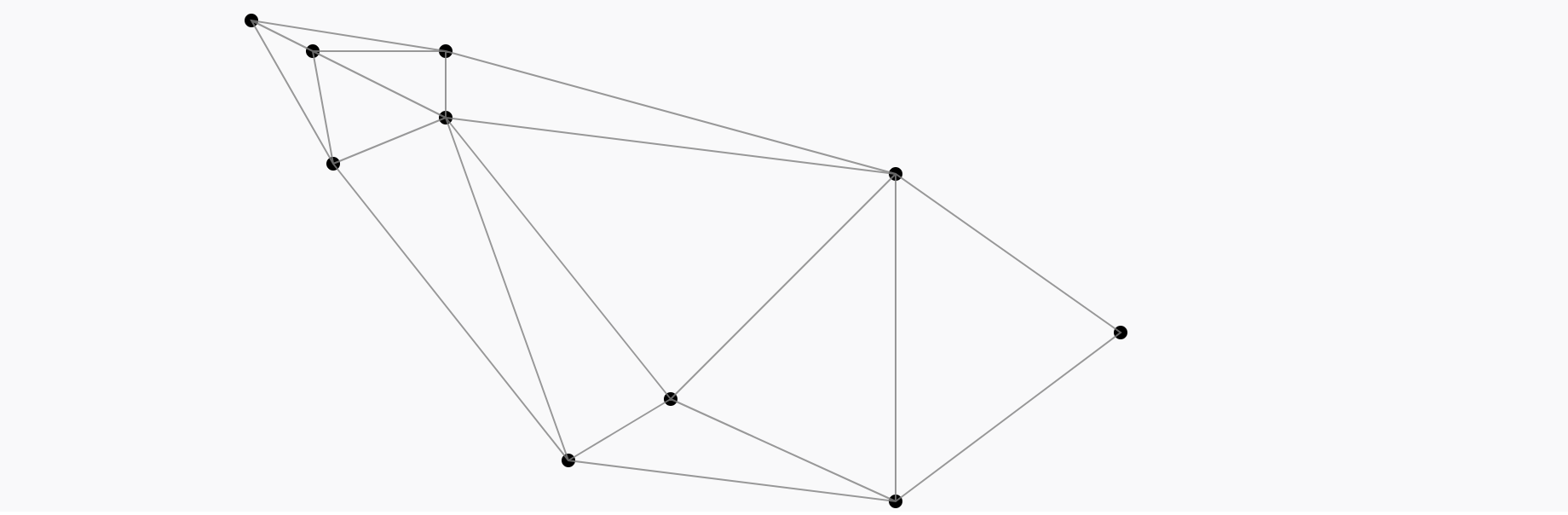

Delaunay triangulation:

Run a Delaunay triangulation on the set of two-dimensional points
Circumcenters:

Join the circumcenters of each triangle to get the voronoi diagram

More details on the Voronoi diagram can be found here.

How Voronoi Treemaps are generated

The d3-voronoi-treemap.js library

This code sets up a module that can be used in both CommonJS and AMD (Asynchronous Module Definition) environments. It handles dependency injection, allowing the module to work with various module systems. The module takes exports and d3VoronoiMap as dependencies. It then passes these dependencies to the factory function.

_voronoiTreemap is the main function representing the Voronoi treemap algorithm. Additional functions are defined on _voronoiTreemap to get or set various parameters such as convergence ratio, max iteration count, etc.

recurse is a private function used internally to generate the Voronoi treemap recursively. It assigns the clipping polygon to the node and computes the Voronoi map for its children recursively.


(function (global, factory) {
typeof exports === 'object' && typeof module !== 'undefined' ? factory(exports, require('d3-voronoi-map')) :
typeof define === 'function' && define.amd ? define(['exports', 'd3-voronoi-map'], factory) :
(factory((global.d3 = global.d3 || {}),global.d3));
}(this, function (exports,d3VoronoiMap) { 'use strict';

function voronoiTreemap() {
  //begin: constants
  var DEFAULT_CONVERGENCE_RATIO = 0.01;
  var DEFAULT_MAX_ITERATION_COUNT = 50;
  var DEFAULT_MIN_WEIGHT_RATIO = 0.01;
  var DEFAULT_PRNG = Math.random;
  //end: constants

  /////// Inputs ///////
  var clip = [
    [0, 0],
    [0, 1],
    [1, 1],
    [1, 0],
  ]; // clipping polygon
  var extent = [
    [0, 0],
    [1, 1],
  ]; // extent of the clipping polygon
  var size = [1, 1]; // [width, height] of the clipping polygon
  var convergenceRatio = DEFAULT_CONVERGENCE_RATIO; // targeted allowed error ratio; default 0.01 stops computation when cell areas error <= 1% clipping polygon's area
  var maxIterationCount = DEFAULT_MAX_ITERATION_COUNT; // maximum allowed iteration; stops computation even if convergence is not reached; use a large amount for a sole converge-based computation stop
  var minWeightRatio = DEFAULT_MIN_WEIGHT_RATIO; // used to compute the minimum allowed weight; default 0.01 means 1% of max weight; handle near-zero weights, and leaves enought space for cell hovering
  var prng = DEFAULT_PRNG; // pseudorandom number generator

  //begin: internals
  var unrelevantButNeedeData = [
    {
      weight: 1,
    },
    {
      weight: 1,
    },
  ];
  var _convenientReusableVoronoiMapSimulation = d3VoronoiMap.voronoiMapSimulation(unrelevantButNeedeData).stop();
  //end: internals

  ///////////////////////
  ///////// API /////////
  ///////////////////////

  function _voronoiTreemap(rootNode) {
    recurse(clip, rootNode);
  }

  _voronoiTreemap.convergenceRatio = function (_) {
    if (!arguments.length) {
      return convergenceRatio;
    }

    convergenceRatio = _;
    return _voronoiTreemap;
  };

  _voronoiTreemap.maxIterationCount = function (_) {
    if (!arguments.length) {
      return maxIterationCount;
    }

    maxIterationCount = _;
    return _voronoiTreemap;
  };

  _voronoiTreemap.minWeightRatio = function (_) {
    if (!arguments.length) {
      return minWeightRatio;
    }

    minWeightRatio = _;
    return _voronoiTreemap;
  };

  _voronoiTreemap.clip = function (_) {
    if (!arguments.length) {
      return clip;
    }

    //begin: use voronoiMap.clip() to handle clip/extent/size computation and borderline input (non-counterclockwise, non-convex, ...)
    _convenientReusableVoronoiMapSimulation.clip(_);
    //end: use voronoiMap.clip() to handle clip/extent/size computation
    clip = _convenientReusableVoronoiMapSimulation.clip();
    extent = _convenientReusableVoronoiMapSimulation.extent();
    size = _convenientReusableVoronoiMapSimulation.size();
    return _voronoiTreemap;
  };

  _voronoiTreemap.extent = function (_) {
    if (!arguments.length) {
      return extent;
    }

    //begin: use voronoiMap.extent() to handle clip/extent/size computation
    _convenientReusableVoronoiMapSimulation.extent(_);
    //end: use voronoiMap.clip() to handle clip/extent/size computation
    clip = _convenientReusableVoronoiMapSimulation.clip();
    extent = _convenientReusableVoronoiMapSimulation.extent();
    size = _convenientReusableVoronoiMapSimulation.size();
    return _voronoiTreemap;
  };

  _voronoiTreemap.size = function (_) {
    if (!arguments.length) {
      return size;
    }

    //begin: use voronoiMap.size() to handle clip/extent/size computation
    _convenientReusableVoronoiMapSimulation.size(_);
    //end: use voronoiMap.clip() to handle clip/extent/size computation
    clip = _convenientReusableVoronoiMapSimulation.clip();
    extent = _convenientReusableVoronoiMapSimulation.extent();
    size = _convenientReusableVoronoiMapSimulation.size();
    return _voronoiTreemap;
  };

  _voronoiTreemap.prng = function (_) {
    if (!arguments.length) {
      return prng;
    }

    prng = _;
    return _voronoiTreemap;
  };

  ///////////////////////
  /////// Private ///////
  ///////////////////////

  function recurse(clippingPolygon, node) {
    var simulation;

    //assign polygon to node
    node.polygon = clippingPolygon;

    if (node.height != 0) {
      //compute one-level Voronoi map of children
      simulation = d3VoronoiMap.voronoiMapSimulation(node.children)
        .clip(clippingPolygon)
        .weight(function (d) {
          return d.value;
        })
        .convergenceRatio(convergenceRatio)
        .maxIterationCount(maxIterationCount)
        .minWeightRatio(minWeightRatio)
        .prng(prng)
        .stop();

      var state = simulation.state(); // retrieve the Voronoï map simulation's state

      //begin: manually launch each iteration until the Voronoï map simulation ends
      while (!state.ended) {
        simulation.tick();
        state = simulation.state();
      }
      //end: manually launch each iteration until the Voronoï map simulation ends

      //begin: recurse on children
      state.polygons.forEach(function (cp) {
        recurse(cp, cp.site.originalObject.data.originalData);
      });
      //end: recurse on children
    }
  }

  return _voronoiTreemap;
}

exports.voronoiTreemap = voronoiTreemap;

Object.defineProperty(exports, '__esModule', { value: true });

}));
